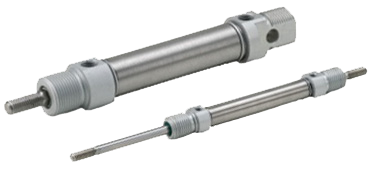

ISO 6432 Cylinders


Dynamax® offers a complete range of ISO 6432 cylinders produced in our Easley, SC facility.
Please download the full catalog at the following link:
   ISO 6432 Catalog download
NEW 2D and 3D CAD Generator Link
Common Bores and Strokes produced. Please note, we produce to order, so all strokes are considered standard for us.
 Select the model number to order or search by specific bore
ISO 6432 Single Acting, Non-Magnetic, Non-cushioned
Bore X Stroke
25mm
50mm
16
C16SE025
 C16SE050
20
C20SE025
C20SE050
25
C25SE025
C25SE050

ISO 6432 Single Acting, Magnetic, Non-cushioned
Bore X Stroke
25mm
50mm
16
C16SEM025
 C16SEM050
20
C20SEM025
C20SEM050
25
C25SEM025
C25SEM050



ISO 6432 Double Acting, Non-Magnetic, Non-Cushioned
Stroke X Bore
50mm
80mm
100mm
 125mm
160mm
 200mm
16
C16DE050
C16DE080
C16DE100
C16DE125
C16DE160
C16DE200
20
C20DE050
C20DE080
C20DE100
C20DE125
C20DE160
C20DE200
25
C25DE050
C25DE080
C25DE100
C25DE125
C25DE160
C25DE200


ISO 6432 Double Acting, Magnetic, Non-Cushioned
Stroke X Bore
25mm
50mm
80mm
100mm
 125mm
160mm
 200mm
16
C16DEM025
C16DEM050
C16DEM080
C16DEM100
C16DEM125
C16DEM160
C16DEM200
20
C20DEM025
C20DEM050
C20DEM080
C20DEM100
C20DEM125
C20DEM160
C20DEM200
25
C25DEM025
C25DEM050
C25DEM080
C25DEM100
C25DEM125
C25DEM160
C25DEM200








ISO 6432 Double Acting, Non-Magnetic, Adj. Cushioning
Stroke X   Bore
25mm
50mm
80mm
100mm
 125mm
160mm
 200mm
16
C16DEA025
C16DEA050
C16DEA080
C16DEA100
C16DEA125
C16DEA160
C16DEA200
20
C20DEA025
C20DEA050
C20DEA080
C20DEA100
C20DEA125
C20DEA160
C20DEA200
25
C25DEA025
C25DEA050
C25DEA080
C25DEA100
C25DEA125
C25DEA160
C25DEA200








ISO 6432 Double Acting, Magnetic, Adj. Cushioning
Stroke X Bore
25mm
50mm
80mm
100mm
 125mm
160mm
 200mm
16
C16DEMA025
C16DEMA050
C16DEMA080
C16DEMA100
C16DEMA125
C16DEMA160
C16DEMA200
20
C20DEMA025
C20DEMA050
C20DEMA080
C20DEMA100
C20DEMA125
C20DEMA160
C20DEMA200
25
C25DEMA025
C25DEMA050
C25DEMA080
C25DEMA100
C25DEMA125
C25DEMA160
C25DEMA200
